Estalky E610 PoC broadband mobile transceiver
Kód: E610Podrobný popis

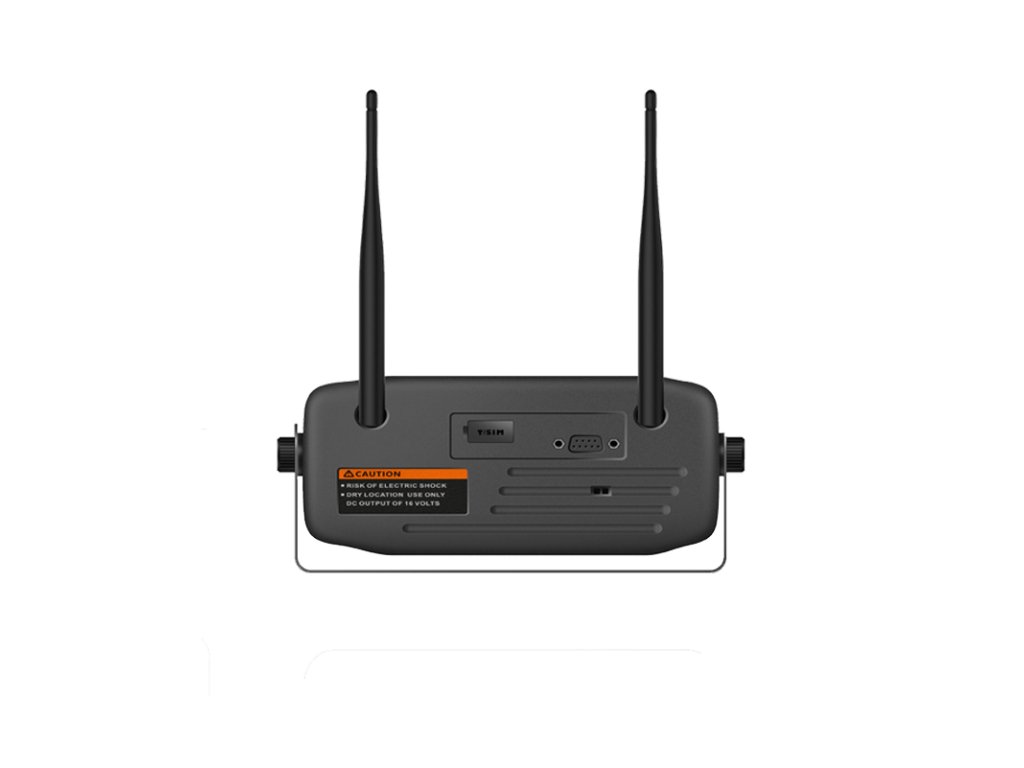

Estalky E610 is a 4G/WIFI capable Android mobile network radio designed for use in a vehicle or as a base station. The device has a large 5.5” touch screen, four programmable buttons – to assist in easy channel selection between talk groups - and a dedicated emergency button which increases user safety. Other features include the external LTE antenna for better signal, and external hand mic interface, this supports digital hand microphones. Estalky E610 mobile radio is based on Android OS, it has high integration for 3rd party Poc platform. With large memory 2/16gb, it can embodied with different apk.
Estalky E610 PoC broadband IP mobile transceiver key functions:
- Push-ToTalk Over Cellular
- Loud and clear voice
- Android 8.1 OS
- 5.5” Tempered Glass
- NFC
- GPS location
- 2/16GB memory
- 5W Speaker
- Dedicated SOS, MAP Button
- Programming key: P1, P2, P3, P4
- IP54 waterproof, dustproof
- Deep Stable Communication on Road
Estalky E610 PoC broadband IP mobile transceiver box includes:
- Estalky E610 PoC broadband IP mobile transceiver
- LTE Antenna
- Power Cable
- Remote Microphone Speaker
- Bracket
- User manual
Important information:
The Estalky E120 requires an internet connection (SIM card or Wi-Fi) and the ANIPOC service from Anico Kft. for operation. The product price includes the first year of ANIPOC license fee. You can purchase a SIM card from Anico Kft. (for EU usage) or integrate it into your own SIM fleet.
CPU | MTK6739 |
Android | Android 8.1 |
Memory RAM+ROM | 2GB +16GB |
SD Card | 64GB |
LCD | TFT 5.5", resolution:1280 X 720 dpi WVGA, 16M color IPS TFT |
Touch type & size | 5.5" / Capacitive |
Glass | Coning generation 3 |
Multi-touch | 5 point touch screen |
Sensor | G-Sensor/Gyroscope/Compass |
Network (GSM, WCDMA, FDD, TDD) EU Version | GSM:850MHz / 900MHz / 1800MHz / 1900MHz, WCDMA:B1 / B2 / B5 / B8, TD-SCDMA:B34 / B39, CDMA2000:BC0, LTE-TDD:B38 / B39 / B40 / B41, LTE-FDD:B1/ B3/ B7 / B8 / B20 / B28 (A&B), DMR:UHF 400-470MHz |
Front& Rear Camera | Front:2MP |
Wi-Fi | 2.4G&5G |
Wi-Fi anternna Type | Wi-Fi & BT Coexistence, Internal FPC antenna |
Bluetooth Version | BT v4.0 with BLE BT2.1 + EDR (Enhanced Data Rate) |
GPS & A-GPS | Yes |
Speaker & MIC Output | Φ50mm,4Ω,5W |
SPL | 106dB |
Receiver | 1506 |
MIC Type | Dual MIC, DMR POC Use microphone independently |
MIC Sensitivity | -42dB±3 |
SIM card | One Push NANO SIM Card |
Connector Interface | DB9 Connector |
Earjack Interface Type | No |
Indicator LED | 3-colors (Red, Green, Blue) |
Size (H*W*D) | 190 x 93 x 66mm |
Weight | 486g |
IP protection | IP54 |
Drop Test | Standard |
Buttons | PTT, SOS, Channel, Power, Volume |
Battery | No |
External Hand mic interface | 4pin GX16 Hand mic |
POWER SUPPLY interface | 12V input voltage |
Operating Temperature | -20℃ ~ 80℃ |
ESD | Contact:± 6KV, Air:±8KV |
